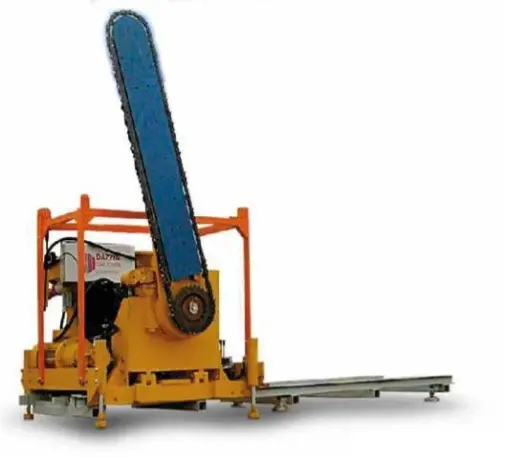

Result o fan accurate development and research on top quality materials and components, the hydraulic chain saw machine series tci is the new frontier in
chain cutting. the ultimate solutions present on this machines can guarantee maximum efficiency and performance in any working conditions, in respect of the
highest reliability and safety standards. the chain saw machines can work dry or with water and make vertical and horizontal cuts. useful cuts from 1,00 to 2,50
mt. remote control botton-panel. hydraulic pistons for positioning. Air-oil cooling.
The hydraulic system installed on TCI260VH is the most advanced on the market. The chain drive pump is a variable capacity type, in order to get the best cutting speed according to the hardness of material. The system allows to use only the necessary oil, which means maximum energy saving and environment respect.The arm has been specifically designed for dry cut; its particular geometry has been studied to prevent any flexions during horizontal cuts.The blade, made of special steel, is milled and rectified.The chain is lubricated through seven distribution nipples ensure proper greasing during the dry cut.
INSTALLED ELECTRIC POWER
47,5 HP / 35,5 KW
OIL TANK CAPACITY
160 Lit.
CUTTING DEPTH
1,00 / 2,00 mt.
ARM ROTATION
360°
CUTTING CHAIN
0 / 4,00 mt./sec.
DIMENSIONS
172 x 128 x 170 cm.
RAIL LENGHT
300 cm.
RAIL WIDTH
110 cm.
WEIGHT WITH RAIL, ARM, LIFT BAR
3.200 Kg.
