New - Build-To-Order BELLANI MODULO R3 | Edge Polishers

Description

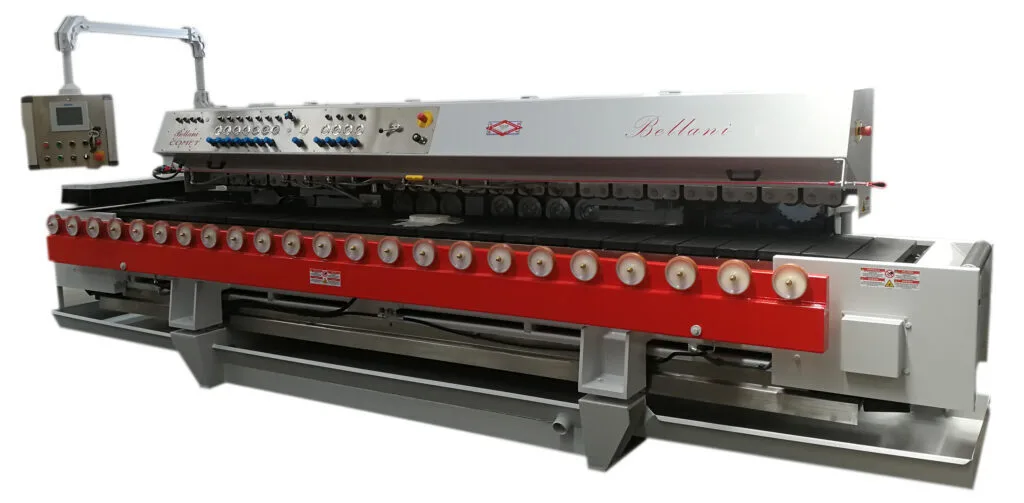

The MODULO R3 edge polisher model is the ideal option for those looking for an all-in-one solution for high quality and precision work.

At the forefront of marble processing machinery technology, the MODULO R3 model stands out for its dual functions, developed to satisfy the most complex needs. Here are the features that make it unique:

Double Functionality in One Step
Two Independent Spindle Groups: While one group is dedicated to the impeccable polishing of the straight edge, the second focuses on the precise execution of the small radius, both upper and lower, in a single pass. The so-called Pencil-round.

Advanced technology
A Vertical Calibrator and a Horizontal Calibrator are placed at the beginning of the bench to smooth out the edge and regulate the thickness of the slab being processed.

Following are 4 Bevels: The first upper bevel and the first lower bevel are equipped with a probe, diamond and mechanical block and have the double function of bevels and roughers to prepare the execution of the small radius. Followed by an oscillating spindle group for making small radius made up of 4 (or 6 spindles). To close the group of fixed spindles also equipped with swinging for the perfect polishing of straight edges.

The bench widening bar on the front completes the composition making it possible to process very large pieces.

Adaptability and Customization
Like all our machines, the Modulo R3 is also equipped with a front bar to widen the support bench and be able to comfortably handle even very large slabs.

The Modulo R3 is adaptable to the needs and requests of customers, therefore the most requested composition on the market at the moment includes the composition which includes 6 beveled spindles, 6 oscillating spindles and 6 spindles for polishing the straight edge. Together with the presence of the Vertical Calibrator and the Horizontal Calibrator at the input.

We can also plan to customize the machine with the drip disc or other options, guaranteeing a tailor-made solution for each project.
