Milling machine

Description

A machine designed for working with disc of marble, stone, granite.

The technology, precision and reliability of a numerically controlled machine center make Blade 5 unique, efficient and highly reliable, a machine built for working with marble, stone and granite discs. Blade 5 is a milling, shaping, polishing and contouring machine capable of working on different materials such as natural stone, quartz, ceramic, glass, plastics.

The high speed of the movement of the axes is ensured by a brushless motorization combined with ball screws, while the sliding on linear guides with ball bearing blocks, the protection of the moving parts with pvc bellows and an oil lubrication system centralized guarantee quality and precision over time.

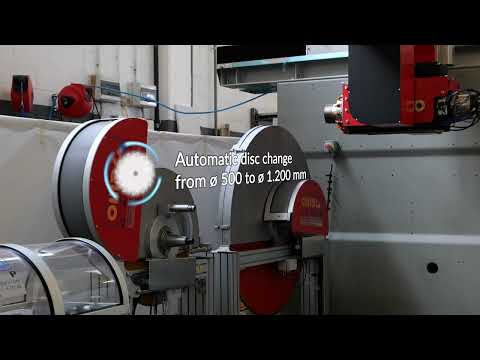

The machine can be equipped with a diamond disc with a diameter of up to 1600 mm, tiltable up to 140 ° and rotatable up to 380 °. The working table has a fixed position: it is the disc that automatically positions itself with respect to the profiles and cuts to be made. The numerical controls used are from the main world manufacturers, the software development (CAD / CAM) and the customization of the machine functions are carried out by an OMAG staff who also has the task of ensuring the training and pre and post sales assistance service.
