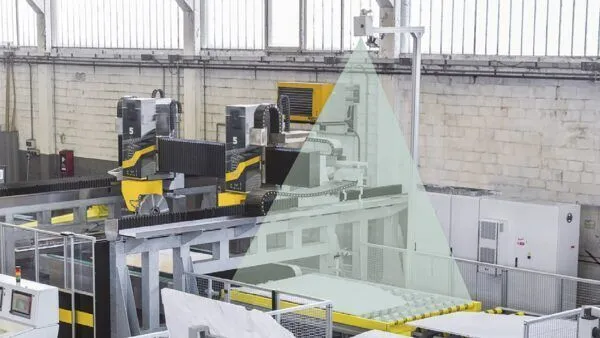

OMAG AREA MULTI CUT

Minimum disc diameter mm / inch 300 / 11.88″
Maximum disc diameter mm / inch 625 / 24.60″
Maximum cutting thickness mm / inch 210 / 8.26″
Minimum distance between discs mm / inch 200 / 7,87″
Maximum distance between the discs mm / inch 4.800 / 188.97″
Spindle motor power S6 25 HP – S1 20.4HP
Spindle rotation with inverter 0 ÷ 4.000
Axis rotation C ° – 200 / + 200
B axis inclination 0 / + 90
X axis stroke of the transversal disc mm / inch 3.600 / 141.73″
Y axis longitudinal stroke mm / inch 2.950 / 116.14″
Z axis vertical stroke mm / inch 500 / 19.68″
X axis movement speed m / min 50
Y axis movement speed m / min 50
Z axis movement speed m / min 24
C axis rotation speed ° / sec 60
B axis rotation speed ° / sec 35
Loading table dimensions mm / inch 4.300 x 2.200 / 169.29 “x 86.61”
Working table dimensions mm / inch 4.200 x 2.300 / 165.35 “x 90.55”
Unloading table dimensions mm / inch 4.200 x 2.300 / 165.35 “x 90.55”
Maximum belt speed m / min 16
