Shaping, polishing, turning milling, contouring machine

Description

A high productivity cutting production line

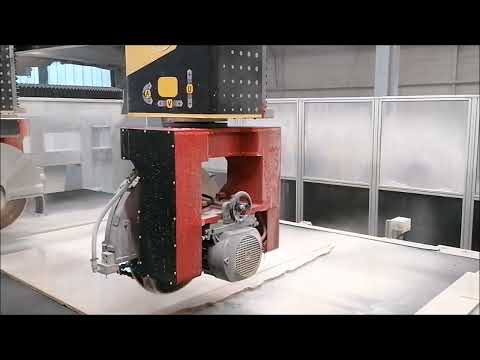

Numerical control cutting machine (single or double) for high production, automatic loading and unloading. In order to optimize a very high productivity machine in a small space, Omag has designed AREAMULTICUT. This numerical control machining center has been designed in such a way as to be able to contain the three main processing phases in a short time In the DUAL version, in a work shift of about 8 hours it is possible to reach a production of about 500 m 2.

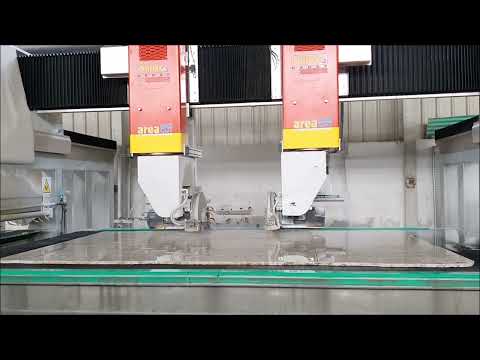

Cutting geometries can be imported either in standard DXF format or in CVS format (simple spreadsheet). Once the cutting geometries have been defined, you move on to the choice of positioning the individual elements in the cutting plate, the NESTING function performs this operation automatically, the user can still customize the cut respecting any grain of the material. Optimizing the cut means minimizing material waste and therefore not intervening manually during the cutting phases. The AREAMULTICUT_DUAL version automatically identifies all the cutting lines that can be carried out simultaneously by both heads. The support table (belt) by rotating ensures that all cutting combinations are possible. The software allows in a simple and intuitive way to relaunch the machined pieces that present anomalies.

All this is possible as the loading phase is carried out with a suction cup loading table, the processing can be carried out in the DUAL version with double head while in the SINGLE version with one head and finally the unloading which can be automated with a robotic system. The unloading of the cut pieces, after being washed and dried, can be done manually or by using an unloading ROBOT.
