OMAG DIGITALE 5

Controlled motion axes 5
Workbench 141” x 78,7” +19,6” / 3.600 x 2.000 + 500 mm
Tilting table function 85° – 3.520 lbs loading / 1.600 kg
Cutting thickness with Ø 24,6” (625 mm) disc 7’87” / 200 mm
Minimum cutting disc Ø 13,7” / 350 mm
Axis X – Transverse axis stroke 141” / 3.600 mm
Axis Y – Bridge axle stroke 104” / 2.650 mm
Axis Z – Vertical axis travel 15,7” / 400 mm
Axis C – Rotation in axis of the disk 0° + / – 200 °
Axis B – Disc inclination 0° + 90

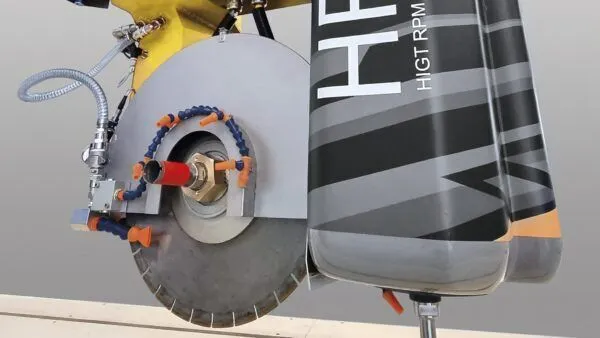

Disc motor power and rotation (S6) 24,4 Hp / 5.000 Rpm
Water consumption 40 liters per minute / litri al minuto
Approximate weight 8.820 lbs / 4.000 kg
Overall dimensions 232” x 185” – h 111” / 5.900 x 4.700 – h 2.800 mm
Shipping volume on demand
